Diesel Hot Water System 440,000 BTU 12 GPM Western-Shelter System New - $4,950 (Richmond)
1100 Jefferson Davis Highway, Warehouse A near Hopkins Road
condition:
new
make / manufacturer:
Western Shelter Systems
model name / number:
WS-DWHM350
size / dimensions:
46 x 28 26
QR Code Link to This Post
New / Unused - Old Stock
Mfg Western Shelter Systems
Proudly Made in the USA
Part # WS-DWHM350
Flow Rate Minimum - 0.75 GPM to Maximum 12 GPM
Pressure Range Minimum - 5 PSI to Maximum 150 PSI
Fuel Options - Diesel, Bio-Diesel, Kerosene, or JP-8
Burner/Coil Output 440,000 BTU (Maximum)
Water Connections - 2-Hot Water Outlets, 2-Cold Water Outlets, 1-Water Inlet
Electrical Connection - 1-Weather tight 120V, 60 Hz, 15 amp outlet, 1-Weather tight 120V, 60Hz, 15amp inlet, 1-Auxiliary 120V, 60 Hz, 15 amp connection

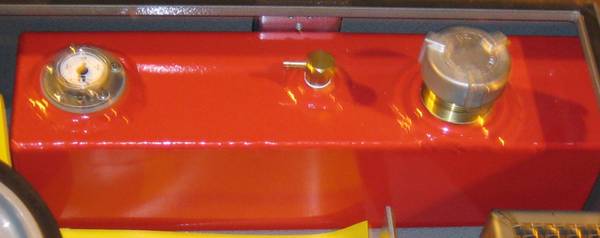

Fuel Cell - 8 Gallon Tank with Gauge
Control Panel - 2-Hot Water Valves, 2-Cold Water Valves, 1-Water Inlet Valve, 1-Water Pressure/Temperature Gauge, Power On/Off Switch, Burner Thermostat, Fuse Holder and Fuse Panel light toggle switch, 1-Weather tight 120V, 60 Hz, 15 amp outlet, 1-Weather tight 120V, 60Hz, 15 amp inlet, and System Power Indicator Light

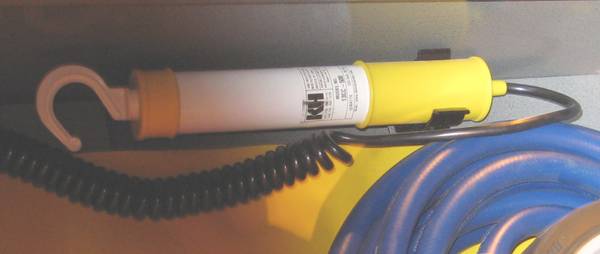

Accessory items include - 2-25’ hot water hoses, 3-25’ cold water hoses, 1-hand held florescent light, 25’ GFCI Power Cord and a detachable wheel kit.
Unit Weight - 370 pounds
Size Dimensions - Length 46” x Width 28” x Height 26”
Operator's Manual on CD
The Water Dragon Multi-Fuel Hot Water Delivery System comes completely equipped for operational use and portability. The heater and all accessories come securely packaged inside the powder-coated aluminum body and storage compartment of the unit. The unit/storage case comes with four recessed lifting handles and securing latches. Removable wheels are stored inside for transport, but can be quickly mounted for wheel around mobility.
The Water Dragon, when connected to a 120 V power and a pressurized water source, provides all of the additional components necessary for operational use.
The Water Dragon can efficiently provide hot water to eight showers and three sinks at the same time while maintaining 1 degree temperature within a 1-second flow change.
The Water Dragon can operate efficiently on diesel, bio-diesel, kerosene or JP-8 aircraft fuel.
Information
Western Shelter Systems has a hard-earned reputation of providing shelter solutions and support products with proven reliability. Their products are operationally deployed in some of the most austere locations and harshest environments on earth. Engineered and crafted with deployability in mind, all products are designed with portability, compatibility, interoperability, and stand-alone performance in mind. Innovative products that make our customer's difficult jobs easier and a lot more effective.
The Water Dragon Multi-Fuel Hot Water Delivery System has been specifically engineered for operationally deployed units who require reliable on-demand, high-flow hot water delivery and precise holding temperatures. This durable and portable system offers tremendous interoperability and broad spectrum interface with field showers, hygiene centers, field kitchens and other applications. The user friendly configuration and ease of operation makes this system extremely popular.
This rugged and self-contained hot water delivery system provides up to 12 GPM of controlled temperature flow in half the weight and at approximately one third the cost of competing military and conventional style water heating systems.
The adjustable thermostat and simple operating procedures allow maximum utility and performance of the system while minimizing operator dependent functions and involvement. Unlike most hot water delivery systems, the Water Dragon has no holding reservoir or tank, so it can deliver a continuous water supply while holding a +/-1 degree temperature within a 1-second flow change. Whether the system is chosen for showering, general hygiene, field kitchens, HAZMAT, decontamination purposes, or other military, federal, state, and first responder applications, this hot water delivery system will quickly be considered an important and dependable resource in your arsenal of “must have” products.
