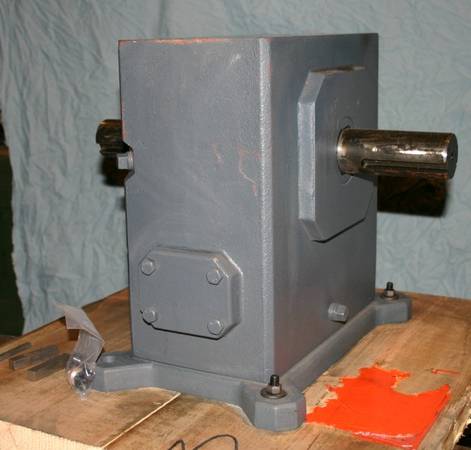

Falk Gear Drive Dual Output Omnibus Worm Reducer 14.3 HP 15:1 New OS - $325 (Richmond)
1100 Jefferson Davis Highway, Warehouse A near Hopkins Road
QR Code Link to This Post
New / Unused - Old Stock - Excellent Condition
Model # 1525WU1A
S/N 09040B851001
Mfg The Falk Corp.
Made in USA
Max. Input 14.3 HP
15:1 Ratio
1-1/4” x 3-38” Input Shaft with 1/4" Keyway (Horizontal LLS, Key Included)
2” x 4-3/4” Double Output Shaft with 1/2" Keyway (5.25” Shaft Center, Keys Included) Clockwise Input/Counter Clockwise Output
Counter Clockwise Input/Clockwise Output
4 Bolt Foot Mounting Base
4 Top Mounting Bolt Holes
Reversible Input Shaft
Approx. Overall Size 15-1/8" H x 19-1/4" W x 18" D
Approx Shipping Size 23” x 14” x 19-1/2”
Approx Shipping Weight 210 pounds
Viton® Double Lip Seals
O-rings on Input and Output Covers 100% Run and Leak Tested
Quill Seal Guard
Cast Iron Housing
High Strength Steel Output Shafts Heavy-Duty Tapered Roller Bearings Non-Compressible Metal Shims Single Cover Output Design Chill-Cast Bronze Gears
Hardened and Precision Ground Worms High Helix Angles
When it comes to winning solutions to your angle, small worm gear drive challenges, Omnibox has it all. Omnibox incorporates Falk’s best durability and reliability features into one, and Omnibox delivers all this quality and performance in a package that offers drop-in convenience for minimal downtime.
Omnibox is all about long life and low operating costs. Viton® Double Lip Seals, providing increased resistance to high temperature, abrasion and chemicals. O-rings on input and output covers eliminate gaskets and silicone sealants that are prone to leaks. And the entire system is 100% run and leak tested. Plus a quill seal guard helps prevent input seal damage during motor installation. So Omnibox protects your investment right from the start.
Tough, winning performances for top performance even in extreme work environments, Omnibus drives
feature the strength and rigidity of cast iron housings. High strength steel output shafts resist failure from starting and stopping torque, shock loads and fatigue, while low speed; heavy-duty tapered roller bearings withstand high overhung and thrust loads.
Quiet, smooth operation the true measure of a Campion is the ability to consistently deliver over time. Our non-compressible metal shims maintain factory bearing settings and gear alignment throughout the life of the drive. The single cover output design ensures gear centering for maximum efficiency, with minimal noise levels. In addition, chill-cast bronze gears help assure long, trouble free life and quality operation. And hardened and precision ground worms feature high helix angles to provide the ultimate in efficiency and torque capacity.
