Heat Exchanger Stainless Steel 2 Coil Graham Heliflow108 Sq Ft New OS - $8,250 (Richmond)
1100 Jefferson Davis Highway, Warehouse A near Hopkins Road
QR Code Link to This Post
New - Unused - Old Stock

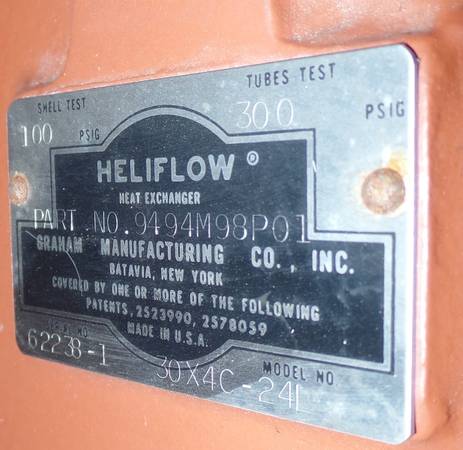

Graham Manufacturing Company
Model 30X4C-24L
Part # 9494M98P01
Serial # 62239-7
National Stock Number NSN 4420-01-221-7857
11/1988
Size 30" x 25" x 16" (Approx.)
Shell Cast Iron, 3" Inlet / Outlet
Shell Test 100 PSIG, Designed for 5.3 Gallons per minute, 66 psi @ 250 degree F
Tube 3" Inlet / Outlet, 2 Coil 304 Stainless Steel, 108 Square Feet
Tube Test 300 PSIG, Designed for 13 Gallons per minute, 200 psi @ 250 degree F
Ship Weight 1000 lbs., 54.7 cubes122830/85
Exclusive, state-of-the-art design. A unique design that makes HELIFLOW Heat Exchangers exceptionally compact, strong, efficient, reliable, versatile, and able to handle a wide range of flow, pressure and temperature requirements. They have had years of proven service in thousands of applications throughout the world, with high quality performance always guaranteed.
Simplicity. The Heliflow encompasses a spiral coil, comprised of multiple parallel tubes mounted within a casing and baseplate. The case/coil construction creates a spiral flow path for both the fluid inside and outside of the tube coil, providing true counterflow.
An accurate, constant velocity is maintained. Coil spacing between tubes may be varied for an optimal balance of thermal and hydraulic requirements. This provides maximum, more consistent heat transfer efficiency.
