Tank 20 Gallon Insulated Galvanized Steel Hot Water Tank - $250 (Richmond)
1100 Jefferson Davis Highway, Warehouse A near Hopkins
condition:
new
make / manufacturer:
LAARS Heating
model name / number:
S18B Part # 2400-378
size / dimensions:
31 x 20
QR Code Link to This Post
New Unused Old Stock
2 each, $250 each

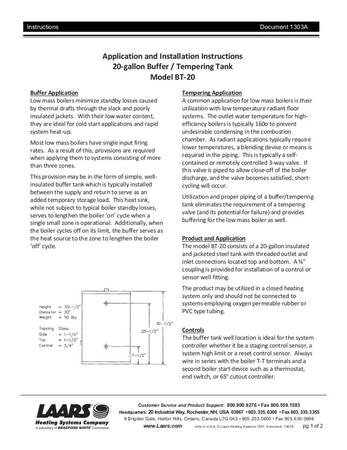

LAARS Heating System made by Vaughn Mfg
Model S18B
Part # 2400-378
20-gallon insulated and jacketed steel tank with threaded outlet and and jacketed steel tank with threaded outlet and inlet connections located top and side.
2" Insulation top, bottom and sides covered in high-impact composite jacket material which cannot rust or corrode.
3⁄4” connection located side for installation of a control or or sensor well fitting.
sensor well fitting.
2" connection Top and Bottom
2 each 1-1/2" connection top and bottom side opposite of 3/4" connection
Hydronic Buffer tanks are designed to be used in closed loop heating systems with low-mass boilers, geothermal systems, wood boiler installations, and chilled water applications. A buffer tank helps to improve system efficiency in hydronic systems operating below the design load conditions by preventing the low-mass boiler from short cycling.
System short cycling can cause the heat pump or boiler to operate less efficiently and may also lead to premature equipment failure.
Vaughn buffer tanks are manufactured using a heavy gauge steel inner tank surrounded by a minimum of 2" foam insulation, resulting in very low standby heat loss. The vessel is protected by a high-impact composite jacket material which cannot rust or corrode.
The hydronic buffer tank are manufactured with two 1.5" tappings for primary/secondary connections. An immersion temperature control well (electronic-controllers/custom-controllers/) is located in the middle of the tank to ensure accurate temperature sensing for heating and geothermal applications, along with a conveniently located boiler drain for periodic sediment removal. Also included is a fitting for an air eliminator at the top of the vessel, reducing air accumulation (and the potential for corrosion) in the system.
